Tissue embedding system with good price for sale.

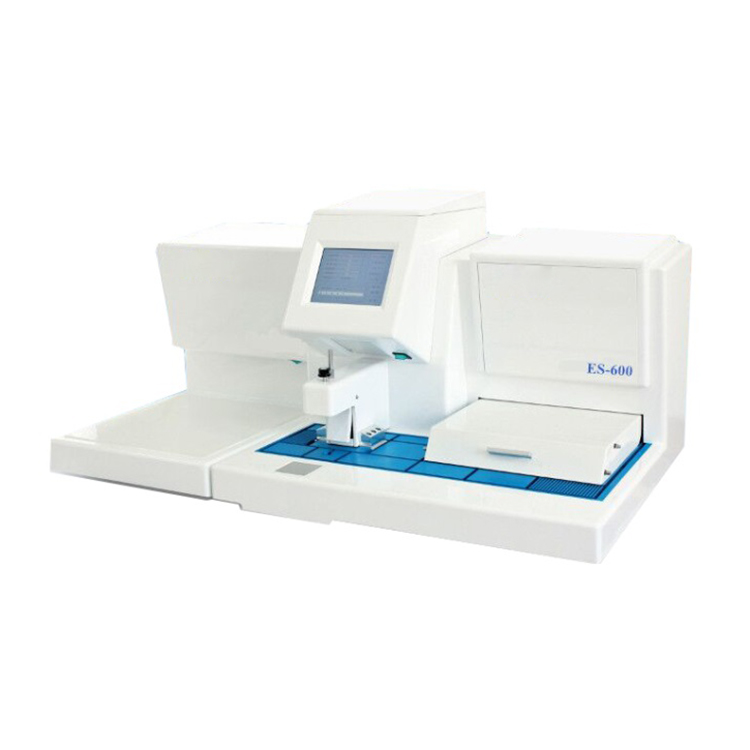

Clinical Analytical Instruments Laboratory Pathology Tissue Paraffin Embedding Center System With Cooling Plate YSPD-ES60
Main Console & Cryo Console
*Automatic program control, It can be setting the operation time for any day, any time, any minute in a week *The machine is composed of two molds,main console and cold plate. It is independent design,can put the position left to-right or right to -left *The large 6L capacity allows user processing 400 tissues at the same time.
*With manual operation and pedal switch for the operator to choose
*LED light for embedding space
*Tweezers storage cylinder is convenient for user *Touching LCD scree is simple and convenient, and it is clear at a glane
Thermal Console
*It is removable in order to facilitate cleaning operations.
*Stand alone unit near microtome/embedding unit.
*It may be placed randomly up to user operating habit.
*Thermal Console holds processed tissue specimens, in any type of cassettes, awaiting paraffin embedding. Stores and warms specimens in a large paraffin tank. Working Surface
Specification
Tissue Embedding YSPD-ES60 | |||||
Technical Specification: | |||||
Main Console | Cryo Console | Thermal Console | |||
Wax cylinder volume | 6L | The size for the cooling surface | 365x330mm | Paraffin tray Capacity | 5Lt |
Heater temperature setting range: | Ambient to 99 ℃ | The size for the whole cryo console | 380x650x450mm | Working temperature: | From ambient to 80℃ increments 1℃ |
Temperature for the heat preservation tank： | Ambient to 99 ℃ | Voltage | 110v-240v; 50Hz-60Hz | Dimensions | 410* 620*440mm |
Temperature for the operation table: | Ambient to 99 ℃ | Power | 120W | Weight | 13kgs |
Working environmental temperature | 0 ℃ - 45 ℃ | The temperature for the cooling plate | -20 degree | Nominal supply voltage | 220V/50Hz |
Dimensions | 600 x 650 x 450mm |
|
| Maximum power draw | 650VA |
Weight | 40kgs |
|
|
|
|
Voltage | 110v-240v; 50Hz-60Hz |
|
|
|
|
Power | 1500W |
|
|
|
|
Whole Set Packing Information: | |||||
Weight | 130 kg | ||||
Dimension(mm) | 1180*750*620 mm 725*530*620mm | ||||
Packing | In wooden case | ||||
